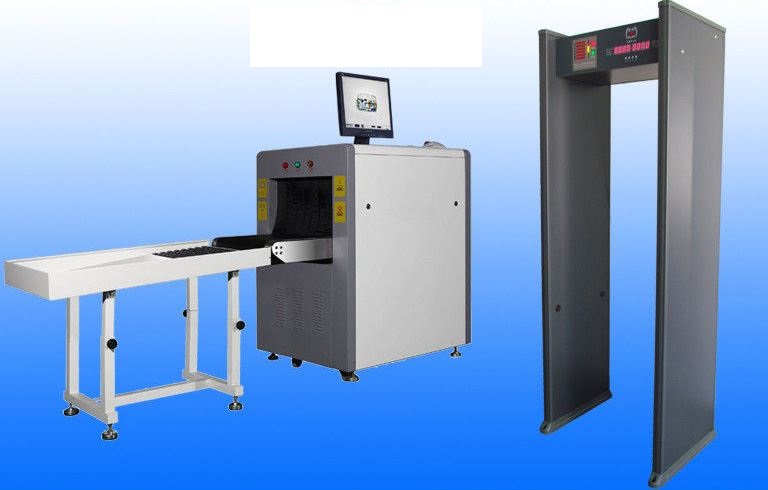

Auto Alarm Baggage X Ray Security Scanner With 0.22mms Conveyor Speed by Hiphen solution
Auto Alarm Baggage X Ray Security Scanner With 0.22mms Conveyor Speed by Hiphen solution
Ad details
General Feature
Tunnel Size……………500(W)*300(H)mm
Conveyor Speed…….0.22m/s
Conveyor Max Load……20kg
Dose per Inspection……< 2.9μGy/h
Resolution……………< 0.101mm Metal Wire
Spatial resolution…………Level: dia1.0mm, Vertical: dia1.3mm
Penetrate resolution………Dia 0.511mm
Penetration…………32mm Steel
Film Safety…………Guarantee ISO1600 Film
X-ray Leakage………0.05 μGy/h (at a distance of 5cm From external housing)
Specifications:
Tunnel Size:
500(W)*300(H)mm
Conveyor Speed:
0.22m/s
Conveyor Max Load:
100kgs
Dose per Inspection:
<2.9 μGy/h
Resolution:
<0.101mm Metal Wire
Penetration:
8mm Steel
Film Safety:
Guarantee ISO1600 Film
X-ray Leakage:
<0.05 μGy/h (at a distance of 5cm From external housing)
Generate direct:
Upward
Generate angle:
60 degree
Anode Voltage:
70Kv
Anode power:
0.4 to 0.5mA
Cooling / Duty Cycle:
Oil Cooling /100%
X-ray Sensor:
L-Shaped Photodiode Array (mono-energetic), 12bit Deep
Monitor:
High Resolution Color, LCD Accord, 17 inch
Image Processing:
Edge enhancement, image strengthening, image lightening,
reducing darkening, image returning, image retrieval.
Image Grey Level:
4096
Image Max Resolution:
1024 * 1280 pixel
Image Processing:
24bit for processing real time
Image storage:
Storage 60000 pictures in real time
Zones & Zoom:
1-9 Image regions, 2, 4, 8, 16 Times Enlarge, Whole screen
continuous observation
Operation temperature/Humidity:
0℃-45℃/20%-95%(non-condensing)
Storage Temperature/Humidity:
-20℃-60℃/20%-95%(non-condensing)
Operation Power:
220VAC(±10%)50±3Hz
Power Consumption:
1.0 KW (max), 0.3KW(working)
Noise:
<65db
